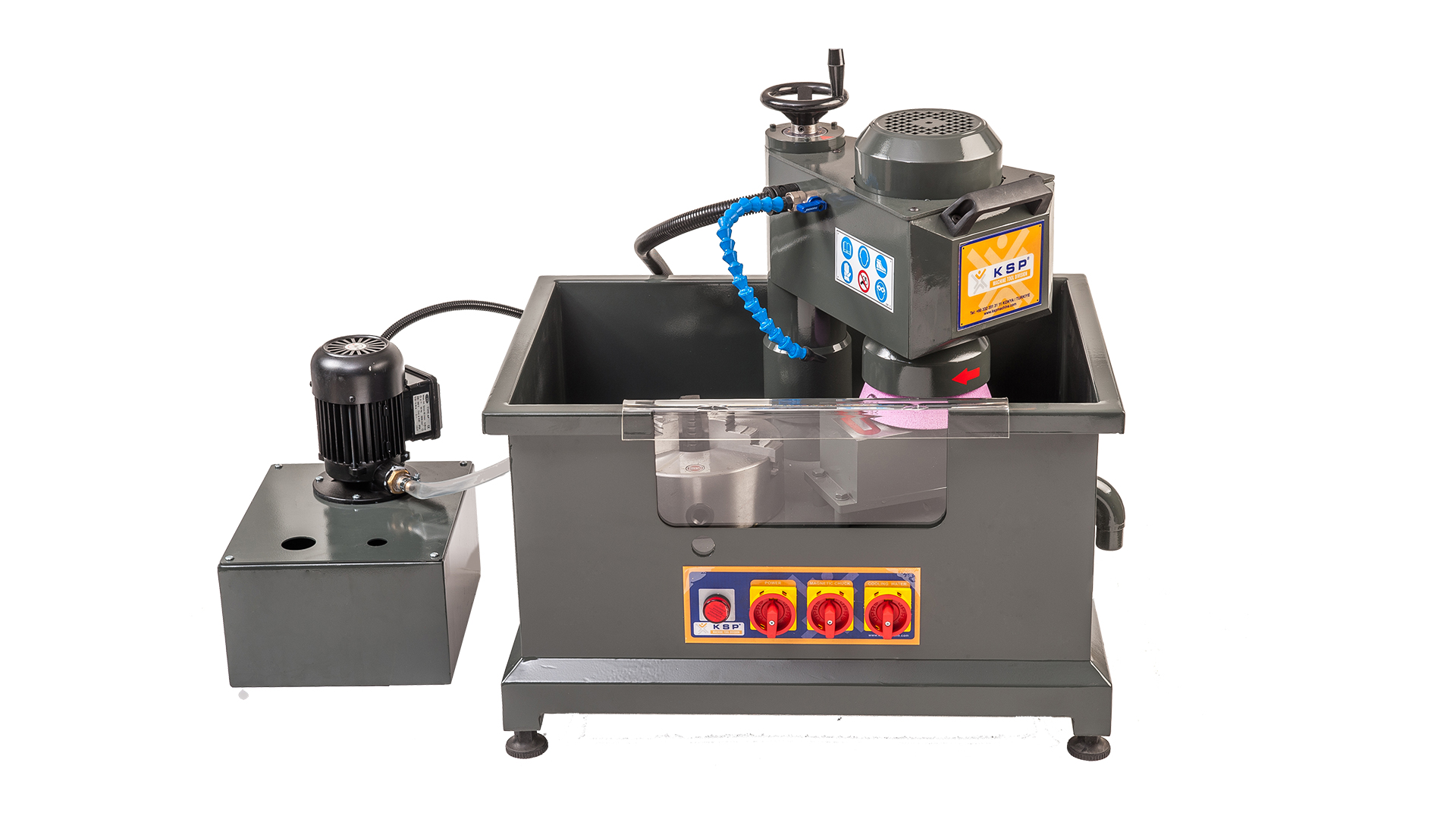

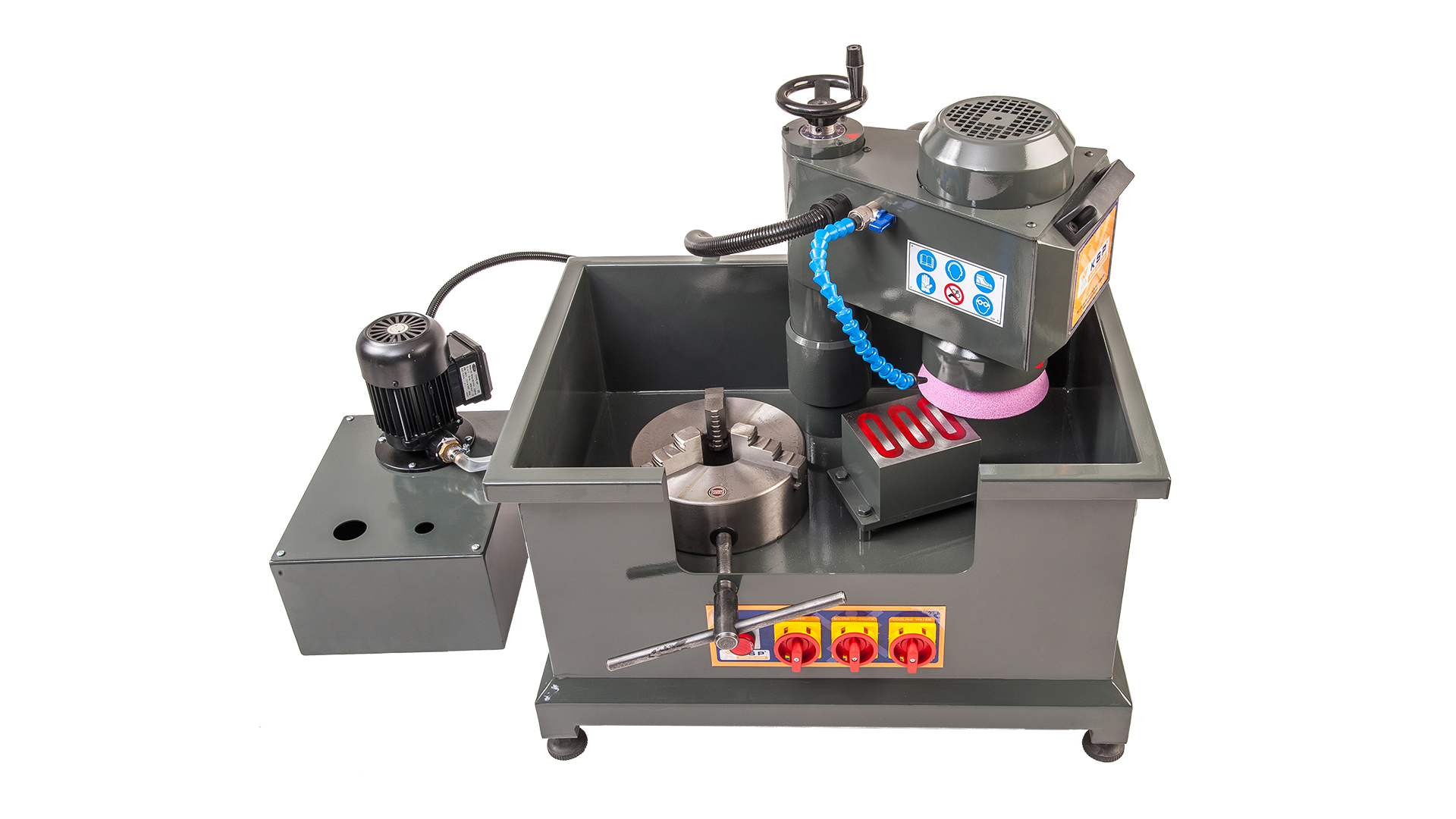

After nearly 20 years of engineering experience, quality manufacturing, and specialized service in the machinery industry, KSP Machine has redefined grinding technology with its VDG Grinding Series. One of the most advanced models in this series, the VDG2015-DC, ensures high precision and safety by securely fixing even the smallest parts with its powerful magnetic chuck.

The 130° rotatable grinding head and 150 mm diameter grinding wheel deliver excellent grinding performance from every angle. The VDG2015-DC Cooling System prevents overheating during the grinding process, preserving the surface integrity of the parts. Additionally, the secondary fixed magnetic chuck allows safe and stable grinding of vertical components.

These features combined achieve a grinding accuracy of up to 0.01 mm. The electronic indicator system enables real-time monitoring of grinding progress, giving the operator full control at every stage. With its robust frame, long-life motor, and optimized power consumption, the VDG2015-DC provides high precision, efficiency, and reliability in industrial production processes.

Technical Specifications

- Solid and durable body construction
- 0.25 kW grinding wheel motor
- 0.18 kW water pump
- Up to 0.01 mm grinding precision
- 150×100 mm, 100 W magnetic chuck
- 150 mm grinding wheel for long service life
- 240 V (optional voltage configurations available)
- 900 × 550 × 750 mm dimensions, 80 kg weight
