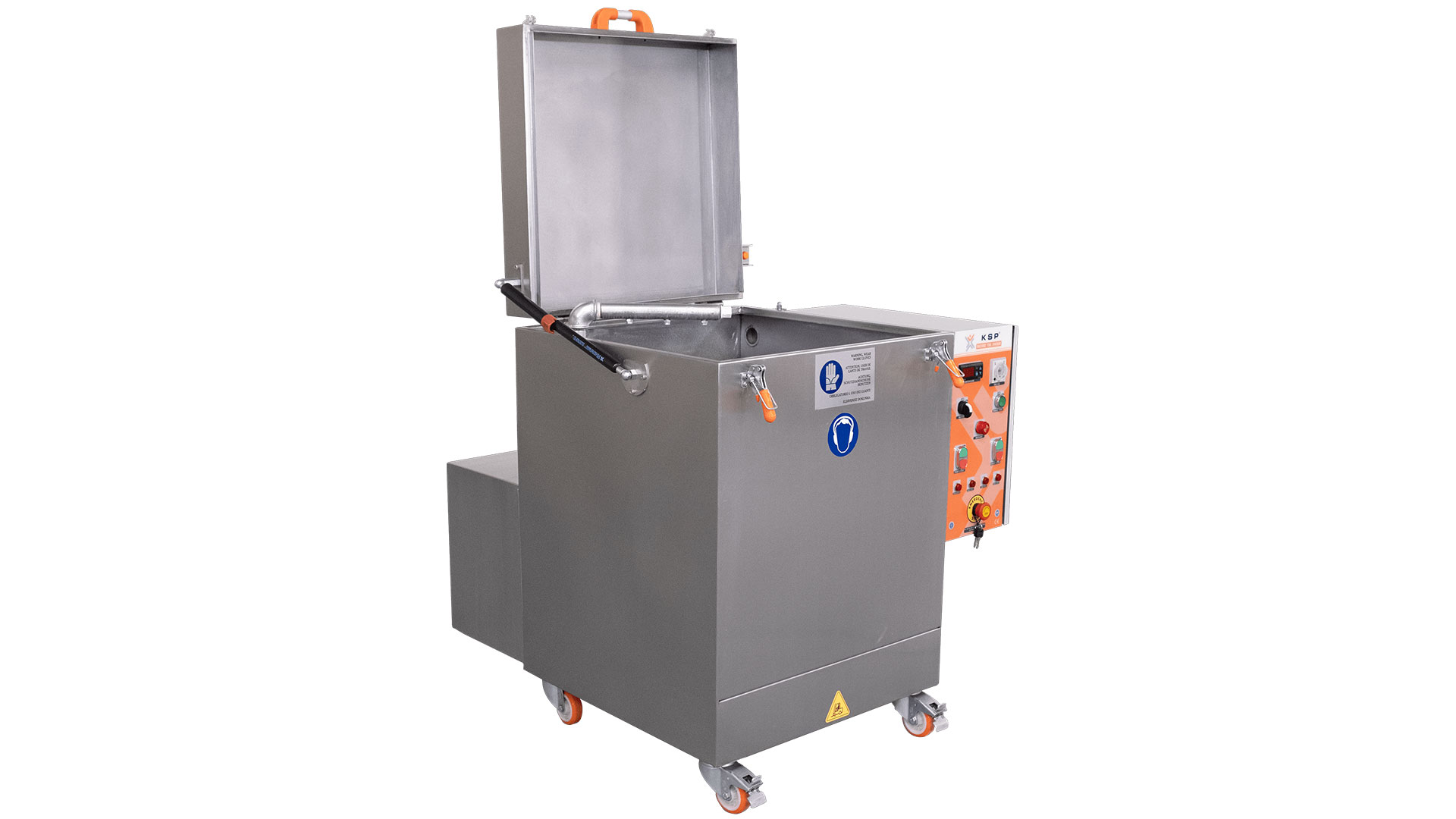

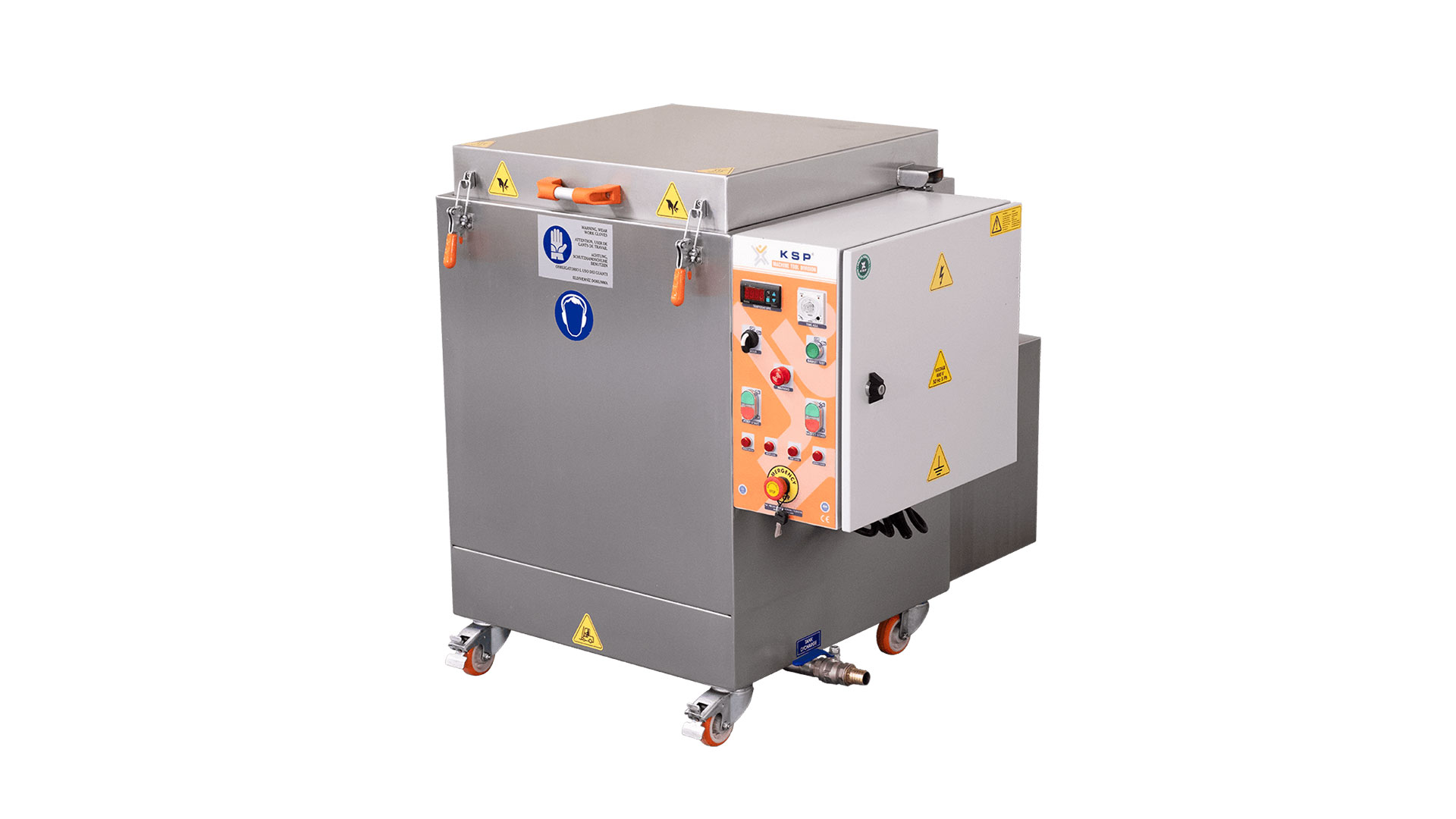

Top-Loading Industrial Parts Washing Machine

WM650

Developed by KSP Machine, the Rotary Basket Washing System delivers effective cleaning by washing parts with high-pressure hot detergent water on a rotating basket inside a closed cabin. Its recirculation and filtration system reduce consumption, improve energy efficiency, and save water, electricity, and time, offering a reliable and sustainable solution for various industries.

Compact
Design

Detailed
Cleaning

Minimum
Consumption

Technical
Service

Developed by KSP Machine, the Rotary Basket Washing System is designed for high-quality, fast, and cost-efficient cleaning of small and medium-sized parts. The parts are placed on a rotating basket and washed inside a closed cabin with high-pressure hot detergent water. During the washing process, integrated spray nozzles direct the water onto the parts’ surfaces, ensuring effective cleaning across all areas.

With its water recirculation system and integrated filters, the machine minimizes water and detergent consumption, reducing costs while supporting an environmentally friendly production process. Its energy-efficient design provides businesses with significant savings in water, detergent, electricity, and time.

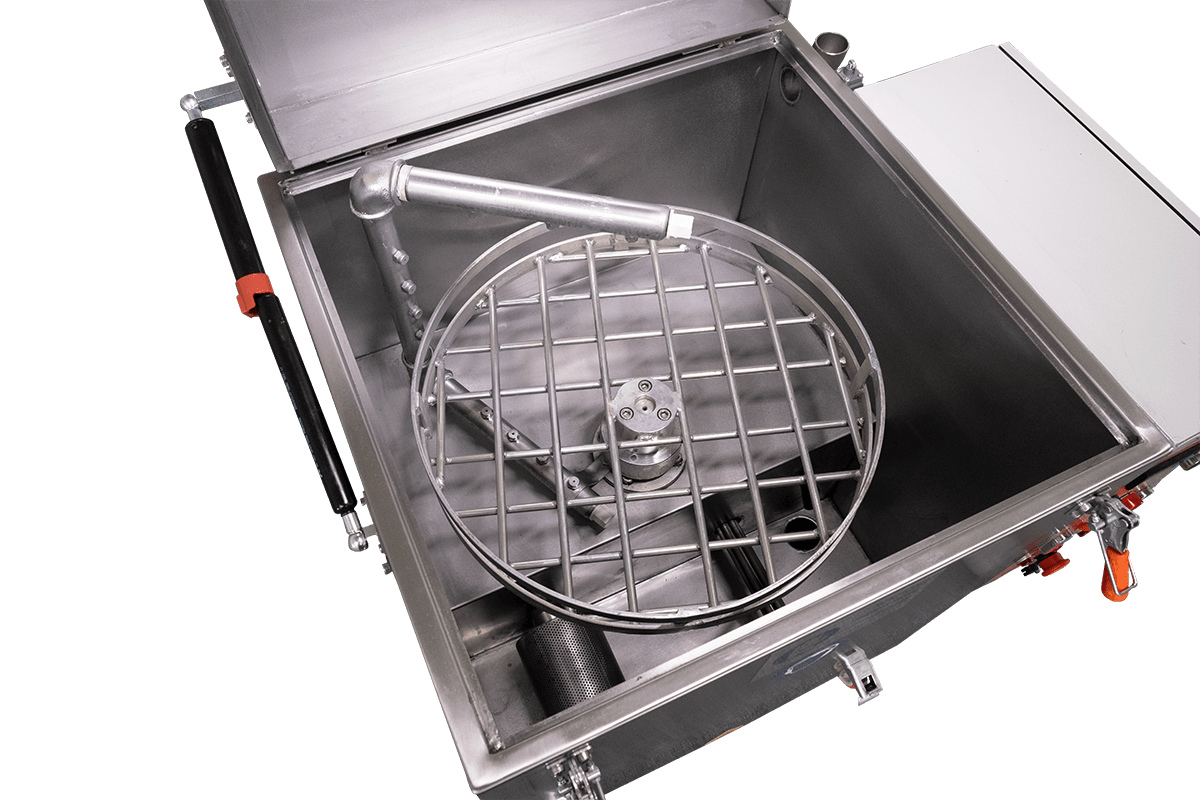

The rotary basket design ensures uniform cleaning of parts, while its modular structure allows the integration of additional processes such as washing, rinsing, drying, and filtration. This flexibility enables the system to be customized according to the specific cleaning needs of various industries.

General Features :

- Stainless Steel Body
- Stainless Steel Basket, Pipes, Nozzles, and Fittings
- Adjustable Cleaning Time
- Minimum Water, Detergent, and Power Consumption
- Special Alloy Incoloy Heater

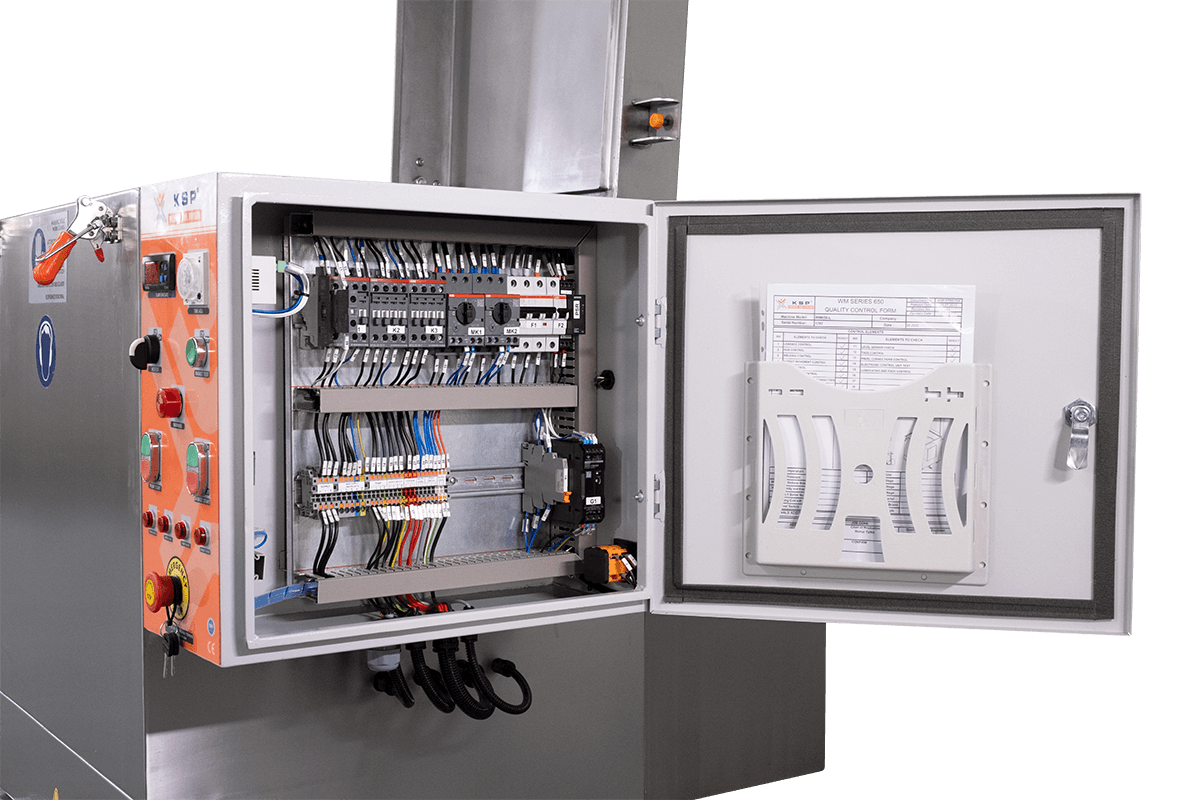

- European-Origin Electrical and Technical Components
- High-Performance and Reliable European-Origin Pumps

Specifications WM650 WM650 - L
Basket Diameter (mm) 550 550
Loading Height (mm) 250 350
Loading Capacity (kg) 150 150
Tank Capacity (L) 60 60
Pump Pressure (bar) 2.5 2.5
Pump Capacity (L/min) 200–220 200–220
Pump Quantity and Power 1 pc x 3.0 Hp 1 pc x 3.0 Hp
Heater (kW) 1 pc x 4.5 1 pc x 4.5
Electrical (V / Phase / Hz) 220–380–415 / 1–3 / 50–60 220–380–415 / 1–3 / 50–60

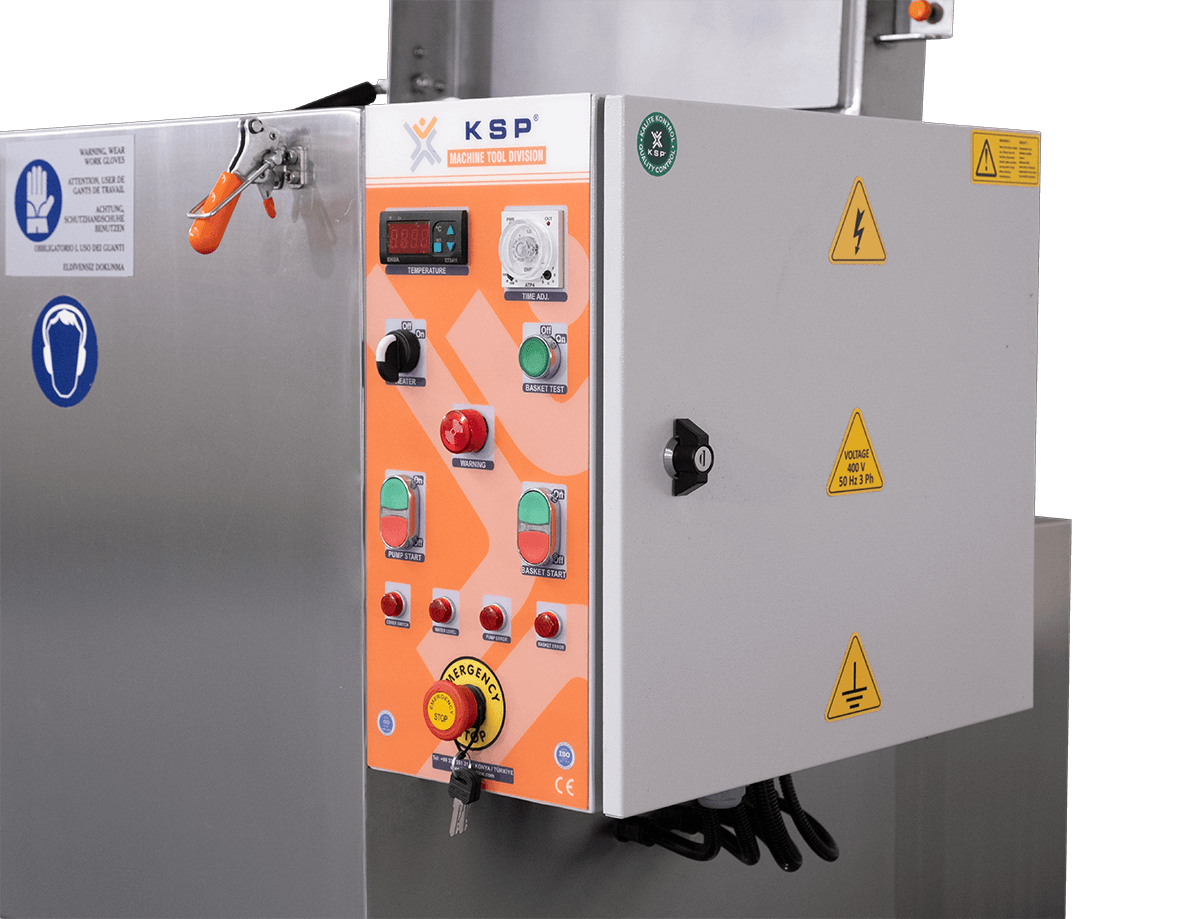

Electrical Control 24 DC 24 DC
Timer (min) 0–90 0–90
Operating Temperature 0–80°C 0–80°C
Rotary Basket s s
AISI 430 Stainless Steel Material s s
AISI 304 Stainless Steel Material o o
AISI 316 Stainless Steel Material o o
Packing Dimensions and Weight (mm - kg) 900 x 1000 x 1150 - 180 kg 900 x 1000 x 1250 - 180 kg
Standard (s)
Optional (o)
Not Applicable (na)
